The Manual-Auto Transfer Switch MATS is a dependable and cost-effective power transfer and bypass switch. It ensures continuous power to equipment and eliminates operation downtime. The MATS acts as a fail-safe device by switching the critical load to the mains supply in case of faulty UPS output.

The Manual-Auto Transfer Switch MATS switches load to the mains supply in the case of UPS output fault and also permits manual bypass of the UPS to facilitate servicing. It is available in 110VAC ~ 230VAC and contains relay contacts for status monitoring rated at 5A.

MATS Technical Description

• Cost effective
• Continuous power to equipment
• Eliminates operation downtime
• Switch load to mains power in case of UPS fault
• Wide operating input voltage 110VAC ~ 230VAC
• Alarm contacts for status monitoring
• Heavy duty design for rugged conditions
• Transfer time approximately 100ms
• Manual bypass available
• MATS001 – Auto Transfer Switch with manual by-pass, wall mount, 110 ~ 230Vac, 16 amps @ AC1, hardwired/connectors
• MATS001R-HW – Auto Transfer Switch with manual by-pass, 19″ rack mount 2RU, 110 ~ 230Vac, 20 amps @ AC1, hardwired

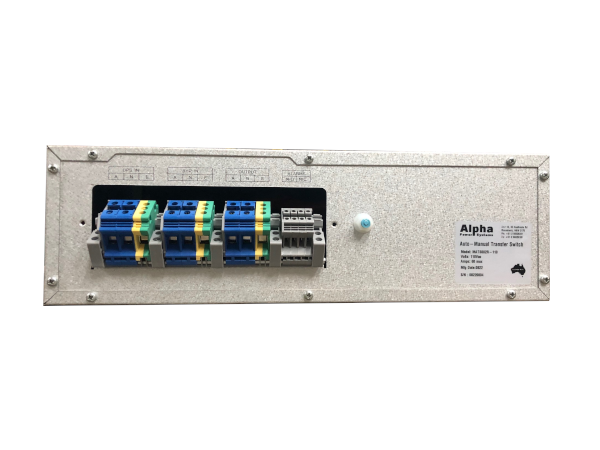

• MATS002R – Auto Transfer Switch with manual by-pass, 19″ rack mount 3RU, 110 ~ 230Vac, 60 amps @ AC1, hardwired
• MATS004R – Auto Transfer Switch with manual by-pass, 19″ rack mount 3RU, 110 ~ 230Vac, 125 amps @ AC1, hardwired
